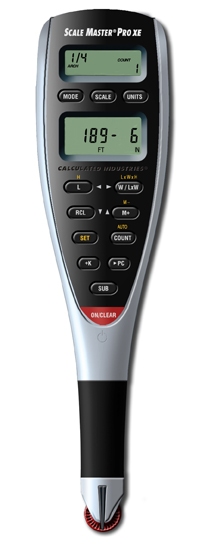

Scale Master Pro XE w/PC Combo Kit
Advanced Digital Plan Measure with PC Interface Cable

Scale Master Pro XE makes it easy to do Linear, Area and Volume take-offs with speed, accuracy and confidence. Whether you’re responsible for estimating, bidding or planning, Scale Master Pro XE offers the ultimate in dimension transfer capabilities from plans, blueprints and maps as well as out of scale drawings. The ergonomic design makes it comfortable to hold, and the dual LCD displays make it much easier to read. The PC Interface is fully compatible with Windows 2000, XP and 32-bit Vista operating systems. Transfer any rolled value and counts directly from the Scale Master Pro XE directly into commonly used spreadsheets or estimating programs. This feature will save you countless keystrokes and time when compared to manual input. Further reduce the potential for costly transcribing errors when completing bids and estimates.

For Contractors, Estimators, Engineers, Architects, Landscapers, Pipeline Builders, Excavators, Concrete Contractors, Electrical Contractors, Plumbers, HVAC, Fencing Specialists, Telecommunications & Cable System Contractors, Pavers, many more

Model #6335

The PC Interface is fully compatible with Windows 2000, XP and 32-bit Vista operating systems. Reduce the potential for costly transcribing errors.

Suggested Retail: $149.95 --

OUR SPECIAL PRICE - $129.95

It helps you solves for:

  • Complete Take-offs with speed and accuracy
  • Reduce errors in estimates and bids
  • Improve productivity and maximize profitability
  • Create permanent record of dimensions and values
  • Interfaces with PC spreadsheets or estimating programs

COMPARE FEATURES

ZOOM IMAGE

- DISCONTINUED -

Dimensional Math and Conversions

  • Wide Range of Dimensional Units : Use best-suited units to fit your work: Decimal Feet, Feet-Inches, Decimal Yards-Feet-Inches, Miles, Nautical Miles, Acres, Millimeters, Meters, Kilometers – most available in square and cubic formats.
  • 91 Built-in Scales: 50 Imperial (Feet-Inch) and 41 Metric for maximum versatility in architectural, engineering and civil/map scaling.
  • Ten "Custom" Scales : Five each for Imperial and Metric units, lets you “roll” or define any scale, even from plans that have been reduced, enlarged or are out of scale. Permanently store the new scale for future use.

Dedicated Functions:

  • Dedicated Length, Width and Height Keys: "Roll", store and recall L, W & H values and instantly finds rectangular Areas and Volumes.
  • Auto Count Feature: Automatically "counts" how many times a pre-set distance has been rolled. Great for stud counts, columns, fence posts, outlets, fixtures or any other regularly spaced items.
  • Count While Rolling: Push-button counter lets you count items as you roll.
  • Constant (+K) Key: Allows you to add (or subtract) a constant value to the distance measured. Great for "drops" and add-ons.
  • Lock Switch : Lock in the mode and scale to prevent changing them while rolling.

Time Saving Utilities:

  • Wide Range of Dimensional Units: Use best-suited units to fit your work: Decimal Feet, Feet-Inches, Decimal Yards-Feet-Inches, Miles, Nautical Miles, Acres, Millimeters, Meters, Kilometers, and Hectares – most available in square and cubic formats.
  • Subtract Key: Allows you to easily deduct rolled distances.
  • Accumulating (M+) Memory: Allows easy totaling of dimensions or counts – perfect for multi-page plans.
  • Auto Shut-off

Tech Specs - Scale Master Pro XE

  • Size: 7.23 x 1.9 x 0.6” (186 x 47 x 15mm)
  • Weight: 2.1 oz. (60g) incl. batteries
  • Power: Two 3-Volt Long-Life Lithium Batteries (Incl.)
  • Display Type: LCD segment; 7-Digit main display, 3 digit count, 5 digit scale display, with Annunciator Legends
  • Wheel Resolution: 0.025 inch (0.635mm)
  • Entry System: Bi-directional Rolling - either direction - either hand
  • Accuracy: 2-4%, based on user's start & stop accuracy; 12 digit internal accuracy
  • Display Capacity: 7 Digit ‘Main’ Display: 3 Digit ‘Count’ Display
  • PC Interface Specifications: Fully compatible with Windows 2000, XP and 32-bit Vista operating systems.
PC Interface Specifications

System Requirements:

  • Windows 2000, XP or Vista 32-bit
  • Available USB port
Includes:
  • 15 foot (4.5 Meter) USB Cable for PC Interface
  • Hard Cover Protective Case
  • Easy-to-follow written Installation and Operation Guide
  • Two 3-Volt Long-Life Lithium Batteries (Incl.)
  • Full One-Year Limited Warrant

Works with the following estimation programs:

  • Sage Timberline Office
  • Craftsman National Estimator
  • Accubid
  • McCormick Estimating Software
  • UDA Construction Suite
  • ConEst
  • WinEst
  • QuickBooks
  • Hard Dollar
  • ProEst
  • RSMeans CostWorks
  • Hometech
  • HCSS HeavyBid
  • On-Center
  • Applied Systems Associates
  • PlanSwift
  • Activant
  • ArenaSoft
  • AGTEK
  • Bid2Win
  • CRT
  • EasyEst
  • Deluxe Invoices & Estimates
  • DQ 2000
  • Microsoft Excel
  • Microsoft Project
  • FastPipe & FastDuct
  • GEM by Compu-Ability Inc.
  • ICE by Management Computer
  • Controls
  • Jaffe
  • Lotus
  • Goldenseal
  • Sage Master Builder
  • MaxView
  • MC2
  • MIKE
  • One-Step Estimating
  • PeachTree
  • Planit Cabinet Vision
  • Primavera
  • Quickpen
  • QuoteWerks
  • RemRate
  • SAO
  • Sharpsoft Estimator
  • Shear97
  • Soule' Software
  • TradePower
  • Vision
  • Bid4Build
