Operating Modes
- Stand Alone Operation
Measure and display line lengths, areas, perimeters, volume, wall areas, arc lengths, radius and diameter without the use of a PC.
- PC Input Mode
Send displayed values to your spreadsheets and estimating software programs via supplied USB cable (no special USB driver software needed).
- Digitizer (x,y) Coordinate Entry
Send coordinates to graphic digitizing software like our Smart Takeoff! program.
Additional Features
- Ergonometric shaped measuring device and large targeting window gives you point-to-point measuring accuracy
- Easy to read LCD display
- 72 built-in scales or create custom scales for out-of-dimension drawing and plans
- Imperial or Metric Mode
- Change units of measure of any displayed value at any time
- Easily recall line lengths and computed measurements for current measured shape
- Enter a stored Height and get volume and wall area calculations
- Operates on 4 –AAA batteries (included) or from USB Cable when connected to PC
- Automatic Shut-Off saves battery life
|
Smart Takeoff! Software
- USB Plug-and-Play interface
- Works with any scale
- Digitizes areas, perimeters and lengths
- Two- and three-dimensional perspective graphic display of digitized images
- Transfers digitized quantities into any Windows® program, including spreadsheets!
- Draws in any color available in the Windows® palette
- Seven fill styles for area objects
- Selectable line weight
- Auto-zooms image so that it always fits the computer’s display
- Exports graphic image to DXF (Drawing Exchange Format) files
- Measures unknown scales on reduced or enlarged drawings
- Supports both imperial and metric units
Measuring Shapes
- Simple or Complex Polygons
Measure all polygon points and automatically find area, line lengths, perimeter and volume.
Rooms, walls concrete pads, parking lots, floor coverings, and small site excavations
- Polylines
Measure two or more points and automatically get segment length, total length and wall area.
Walls, foundations, piping, electrical, and other linear measurements
- Irregular Shapes
Measure all points on the curved shape and automatically find area, perimeter and volume.
Pools, planting beds, curbing, and water proofing
- Arcs
Measuring the starting point, high point and finishing point of the arc and automatically get area, perimeter, arc length, volume, and wall area.
Arched windows and doorways
- Circles
Select any three point on the circle and automatically get area, perimeter, volume, radius and diameter.
Columns and roundabouts
|
| |
Preference Settings:
- Display Total Measurements or last segment measured
- Beep sound control
- US/Euro value display
- PC Send Display after data is sent to the PC
- PC data terminating command settings allow you to control spreadsheet cell direction
- Set Right Hand or Left Hand Digitizer mode
- USB Send Delay control for slower computers
Includes

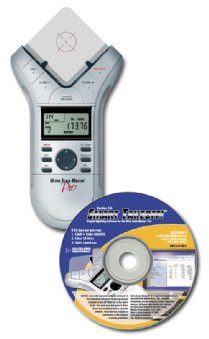

- Measuring Device (Puck)
- 4-AAA batteries
- Reflector Bars
- USB Cable
- Quick Setup Sheet
- Quick Reference Guide
- Fully Illustrated User’s Guide
- Smart Takeoff! Graphic Digitizing Software
- Smart Material Estimator
Spreadsheet Estimating Software for Excel
(Microsoft Excel not included)
- Durable Molded Carrying Case
The Ultra Scale Master Pro®/Smart Takeoff! comes with a 1-Year Limited Warranty and 30-Day Money-Back Satisfaction Guarantee
What is in the box:
- Measuring Device (Puck)
- 4-AAA batteries
- Padded Leatherette Puck Case
- USB Cable
- Reflector Bars
- Quick Setup Sheet
- Quick Reference Guide
- Fully Illustrated User’s Guide
- Durable Molded Carrying Case
- Smart Takeoff! software
- Smart Material Estimator software
|
Tech Specs
Operating Modes:
- Stand Alone Operation
- PC Input Mode
- Digitizer (x,y) Coordinate Entry
(for use with Smart Takeoff! software)
Smart Takeoff!/Smart Material Estimator software:
- Windows® 2000, XP and Vista 32-bit Operating Systems
- Microsoft Excel (for Smart Material Estimator )
- One USB port for the Ultra Scale Master® Pro
- 1.6Hz Pentium microprocessor minimum
- 256 MB RAM minimum
- 10 MB available hard drive capacity
- XVGA or higher resolution color graphics display
- CD-Rom Drive
Computer Interface:
USB 1.1 and 2.0 compatible HID Mode via
supplied cable
Bar Specifications:
- Footprint
25.63 x 37.63 x 1.40 inch (651 x 956 x 36 mm)
- Active Measurement Area
24 x 36 inch (610 x 914 mm) (re-configurable)
- Weight
2.31 Lbs (1049 grams)
Puck Specifications:
- Footprint:
3.79 x 7.63 x 1.13 inch (98.4 x 193.6 x 28.5 mm)
- Weight:
7 oz (200 grams)
- Power Source:
USB power when connected to PC
4 “AAA” batteries when used as stand alone device
- Range:
Up to 36 inches
- Accuracy:
±0.040 inch (± 0.1016 cm)
- Operating Temperature:
41 to 104°F (5 to 40°C)
- Storage Temperature:
14 to 122°F (-20 to 60°C)
Humidity Range:
0 to 95%, non-condensing
Warranty: 1-year limited warranty and
30-day Money-Back Satisfaction Guarantee
Patent: US Patent No. 7,408,838
|
