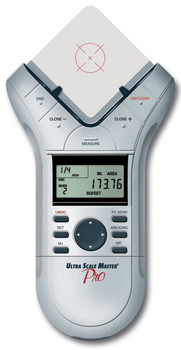

Ultra Scale Master Pro
Area Takeoff Tool and Digitizer System

The Ultra Scale Master® Pro is an affordable and portable area takeoff and digitizing system. The ergonomic design with large targeting window allows you to accurately measure and compute areas, segment lengths, perimeters, and volumes for simple or complex polygons, polylines, irregular shapes, arcs and circles. 72 built-in architectural and engineering scales allow you to measure plans and drawing up to 24" x 36" in size. Four custom scales allow you to measure out of scale drawings. Unlike expensive digitizers, the patented Ultra Scale Master® Pro allows you to measure plans at your office or on the job site without the need for additional computing devices or software.

The Ultra Scale Master® Pro is ideal for residential and light construction contractors such as concrete, flooring/tile, paving, roofing, landscaping, electrical, plumbing and small site excavation.

Model #6260

  • Measure and calculate areas, lengths and volumes for all types of polygons
  • Fast and easy-to-use
  • Affordable, portable and powerful
  • Works with or without a PC

Suggested Retail: $229.95 --

OUR SPECIAL PRICE - $199.95

COMPARE FEATURES

The Ultra Scale Master® Pro can operate as a stand alone digital area takeoff tool, or you can connect it to your PC to transfer measurements into any estimating and spreadsheet program that accept text input from a number pad or keyboard. We even include a FREE copy of Smart Material Estimator spreadsheet estimating software (requires Microsoft Excel). The Ultra Scale Master® Pro can also send digitized (x,y) coordinates to takeoff software programs like our Smart Takeoff! graphic digitizing software.

- DISCONTINUED -

ZOOM IMAGE

Operating Modes

  • Stand Alone Operation
    Measure and display line lengths, areas, perimeters, volume, wall areas, arc lengths, radius and diameter without the use of a PC.
  • PC Input Mode
    Send displayed values to your spreadsheets and estimating software programs via supplied USB cable (no special USB driver software needed).
  • Digitizer (x,y) Coordinate Entry
    Send coordinates to graphic digitizing software like our Smart Takeoff! program.

Additional Features

  • Ergonometric shaped measuring device and large targeting window gives you point-to-point measuring accuracy
  • Easy to read LCD display
  • 72 built-in scales or create custom scales for out-of-dimension drawing and plans
  • Imperial or Metric Mode
  • Change units of measure of any displayed value at any time
  • Easily recall line lenghts and computed measurements for current measured shape
  • Enter a stored Height and get volume and wall area calculations
  • Operates on 4 –AAA batteries (included) or from USB Cable when connected to PC
  • Automatic Shut-Off saves battery life

Measuring Shapes

  • Simple or Complex Polygons
    Measure all polygon points and automatically find area, line lengths, perimeter and volume.
    Rooms, walls concrete pads, parking lots, floor coverings, and small site excavations
  • Polylines
    Measure two or more points and automatically get segment length, total length and wall area.
    Walls, foundations, piping, electrical, and other linear measurements
  • Irregular Shapes
    Measure all points on the curved shape and automatically find area, perimeter and volume.
    Pools, planting beds, curbing, and water proofing
  • Arcs
    Measuring the starting point, high point and finishing point of the arc and automatically get area, perimeter, arc length, volume, and wall area.
    Arched windows and doorways
  • Circles
    Select any three point on the circle and automatically get area, perimeter, volume, radius and diameter.
    Columns and roundabouts


Preference Settings:

  • Display Total Measurements or last segment measured
  • Beep sound control
  • US/Euro value display
  • PC Send Display after data is sent to the PC
  • PC data terminating command settings allow you to control spreadsheet cell direction
  • Set Right Hand or Left Hand Digitizer mode
  • USB Send Delay control for slower computers

Includes

  • Measuring Device (Puck)
  • 4-AAA batteries
  • Reflector Bars
  • USB Cable
  • Quick Setup Sheet
  • Quick Reference Guide
  • Fully Illustrated User’s Guide
  • Smart Material Estimator
    Spreadsheet Software for Excel
  • 30-Day Trial - Smart Takeoff!
    Graphic Digitizing Software
  • Durable Molded Carrying Case

The Ultra Scale Master Pro® comes with a 1-Year Limited Warranty and 30-Day Money-Back Satisfaction Guarantee

What is in the box:

  • Measuring Device (Puck)
  • 4-AAA batteries
  • Padded Leatherette Puck Case
  • 10 ft. USB Cable
  • Reflector Bars
  • Quick Setup Sheet
  • Quick Reference Guide
  • Fully Illustrated User’s Guide
  • Smart Material Estimator
    Spreadsheet Software for Excel
  • 30-Day Trial - Smart Takeoff!
    Graphic Digitizing Software
  • Durable Molded Carrying Case





Tech Specs

  • Shipping Weight:
    7.75 lbs (3.5 kG)

Operating Modes:

  • Stand Alone Operation
  • PC Input Mode
  • Digitizer (x,y) Coordinate Entry
    (optional software is required)

Operating Systems Supported:

Windows® 2000, XP and Vista 32-bit
Microsoft Excel (for Smart Material

Computer Interface:

USB 1.1 and 2.0 compatible HID Mode via
supplied 10 ft. (3.048 m) cable

Bar Specifications:

  • Footprint
    25.63 x 37.63 x 1.40 inch (651 x 956 x 36 mm)
  • Active Measurement Area
    24 x 36 inch (610 x 914 mm) (re-configurable)
  • Weight
    2.31 Lbs (1049 grams)

Puck Specifications:

  • Footprint:
    3.79 x 7.63 x 1.13 inch (98.4 x 193.6 x 28.5 mm)
  • Weight:
    7 oz (200 grams)
  • Power Source:
    USB power when connected to PC
    4 “AAA” batteries when used as stand alone device
  • Range:
    Up to 36 inches
  • Accuracy:
    ±0.040 inch (± 0.1016 cm)
  • Operating Temperature:
    41 to 104°F (5 to 40°C)
  • Storage Temperature:
    14 to 122°F (-20 to 60°C)
    Humidity Range:
    0 to 95%, non-condensing

Warranty: 1-year limited warranty and
30-day Money-Back Satisfaction Guarantee

Patent: US Patent No. 7,408,838
